Toshiba Launches 100V High-Current Photorelay for Industrial Equipment

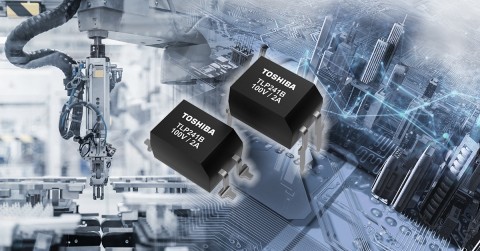

Toshiba: TLP241B, a 100V high-current photorelay for industrial equipment (Graphic: Business Wire)

TOKYO, Japan:

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched “TLP241B,” a high-current photorelay in a DIP4 package for industrial equipment such as programmable logic controllers and I/O interfaces. Samples and production quantities are available now.

TLP241B has integrated MOSFET based on Toshiba’s latest generation of U-MOS process. With TLP241B, the OFF-state output terminal voltage is extended to 100V, a 150% improvement from the 40V of the current TLP241A. It is housed in a versatile DIP4 package, and is the industry’s first^[1] DIP4 packaged product to deliver 100V OFF-state output terminal voltage, 2A ON-state current and 5kV isolation voltage. This rating expansion covers a variety of applications.

TLP241B can replace a 1-Form-A contact mechanical relay. Unlike mechanical relays, TLP241B has no moving contacts to degrade. Its low current drive feature also improves product life. Other benefits are fast response time and PCB space saving due to smaller package size.

Since the maximum operating temperature rating is 110℃, temperature design margins of equipment are easier to obtain.

Applications

– Industrial equipment (Programmable logic controllers, I/O interface and various sensor control, etc.)
– Building automation systems (Heating, Ventilation and Air Conditioning(HVAC) and thermostats, etc.)
– Replacement of mechanical relays (AC 24 to 48V system, DC 24 to 100V system)

Features

– High ON-state current rating : I_ON=2A, I_ONP=6A (Pulsed)
– OFF-state output terminal voltage rating : V_OFF=100V
– High operating temperature rating : T_opr max=110℃
– General-purpose DIP4 package with gull wing option (SMT) available



Main Specifications



(Unless otherwise specified, @Ta=25℃)
Part number		TLP241B
Package		DIP4
Absolute maximum ratings	OFF-state output terminal voltage VOFF (V)	100
	ON-state current ION (A)	2.0
	ON-state current (pulsed) IONP (A)	6.0
	Operating temperature Topr (℃)	-40 to 110
Coupled electrical characteristics	Trigger LED current IFT max (mA)	3
	ON-state resistance RON typ. (mΩ)	110
	ON-state resistance RON max (mΩ)	200
Electrical characteristics	Output capacitance COFF typ. (pF)	300
Switching characteristics	Turn-on time tON max (ms)	3
	Turn-off time tOFF max (ms)	0.5
Sample Check & Availability		Buy Online

Note:
[1] Among DIP4 packaged photorelays, as of February 4, 2021, Toshiba survey.

Follow the link below for more.
TLP241B
https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TLP241B

Follow the link below for more on Toshiba’s optical devices lineup.
Photorelays (MOSFET Output)
https://toshiba.semicon-storage.com/ap-en/semiconductor/product/optoelectronics/photorelay-mosfet-output.html

To check availability of the new products at online distributors, visit:
TLP241B
https://toshiba.semicon-storage.com/ap-en/semiconductor/where-to-buy/stockcheck.TLP241B.html

Customer Inquiries:
Optoelectronic Device Sales & Marketing Dept.
Tel: +81-3-3457-3431
https://toshiba.semicon-storage.com/ap-en/contact.html
