Toshiba Launches Photorelays in New Package for High-density Mounting

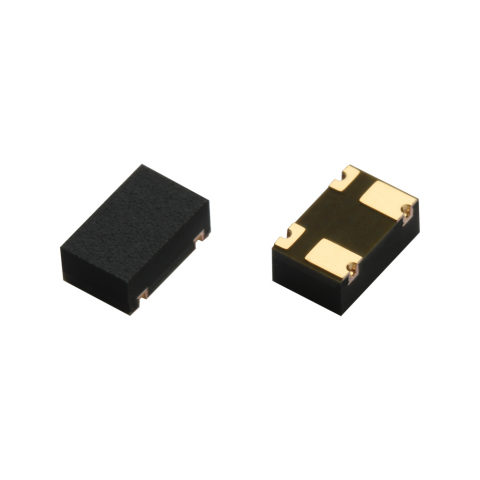

Toshiba: a new package P-SON4 with a significantly smaller mounting area. (Photo: Business Wire)

TOKYO, Japan:

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched three photorelays, TLP3480TLP3481 and TLP3482 in P-SON4, a new package with a significantly smaller mounting area than Toshiba’s SOP packages. Shipments start today.

All of the new photorelays have an OFF-state output terminal voltage rating and ON-state current rating comparable with products housed in SOP package products, with ratings ranging from 30V and 4.5A to 100V and 2A, according to the device.

The new P-SON4 package is highly suited to high-density mounting, as it has a mounting area of 7.2mm2 (typ.), approximately 74% smaller than the 2.54SOP4 package and 84% smaller than the 2.54SOP6 package. It also features low ON-resistance by using Toshiba’s latest MOSFET chips[1] in the receiver.

TLP3480, TLP3481, and TLP3482 have high ON-state-current ratings of 4.5A, 3A and 2A. They can be used in a wide range of measuring equipment applications.

Applications

  • Semiconductor testers (memory, SoC, LSI, etc.)
  • Probe cards
  • I/O interface boards

Features

  • New small package P-SON4: 2.1 x 3.4mm (typ.), mounting area 7.2mm2 (typ.)
  • Large ON-state current rating

TLP3480: OFF-state output terminal voltage rating: 30V, ON-state current rating: 4.5A
TLP3481: OFF-state output terminal voltage rating: 60V, ON-state current rating: 3A
TLP3482: OFF-state output terminal voltage rating: 100V, ON-state current rating: 2A

Main Specifications

(@Ta=25℃)

Part number

TLP3480

TLP3481

TLP3482

Contact

1-Form-A

Package

P-SON4

Absolute maximum ratings

OFF-state output terminal voltage

VOFF (V)

30

60

100

ON-state current ION (A)

4.5

3

2

ON-state current (pulsed)

IONP (A)

10

9

6

Trigger LED current IFT max (mA)

3

ON-state resistance RON max (mΩ)

50

100

200

OFF-state current IOFF max (μA)

1

1

1

Output capacitance COFF typ. (pF)

450

250

170

Isolation voltage BVS min (Vrms)

500

Turn-on time tON max (ms)

5

5

3

Turn-off time tOFF max (ms)

1

Sample Check & Availability

Buy Online

Buy Online

Buy Online

Note:
[1] TLP3480, TLP3481, and TLP3482 are fabricated with the U-MOS process with trench-gate structures.

Follow the links below for more on the new products.
TLP3480
https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TLP3480

TLP3481
https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TLP3481

TLP3482
https://toshiba.semicon-storage.com/info/lookup.jsp?pid=TLP3482

Follow the link below for more on the new package.
https://videoclip.toshiba.semicon-storage.com/ap-en/detail/videos/semiconductor-products/video/6149438836001/introduction-of-new-toshiba-photorelay-p-son-package?autoStart=true



Follow the link below for more on Toshiba’s optical devices lineup.
Photorelays (MOSFET Output)
https://toshiba.semicon-storage.com/ap-en/semiconductor/product/optoelectronics/photorelay-mosfet-output.html

To check availability of the new products at online distributors, visit:
TLP3480
https://toshiba.semicon-storage.com/ap-en/semiconductor/where-to-buy/stockcheck.TLP3480.html

TLP3481
https://toshiba.semicon-storage.com/ap-en/semiconductor/where-to-buy/stockcheck.TLP3481.html

TLP3482
https://toshiba.semicon-storage.com/ap-en/semiconductor/where-to-buy/stockcheck.TLP3482.html

Customer Inquiries:
Optoelectronic Device Sales & Marketing Dept.
Tel: +81-3-3457-3431
https://toshiba.semicon-storage.com/ap-en/contact.html

*Company names, product names, and service names may be trademarks of their respective companies.
*Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
